Desktop Troubleshooting Trainer

Description

Desktop Troubleshooting Trainer
Model: BT- 03DTT

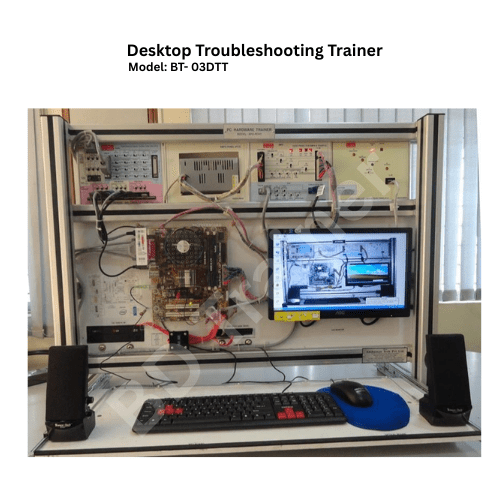

Presenting our PC trainer, mounted openly on a compact Aluminium profile flat demo rack with a convenient drawer for a keyboard and mouse. The LCD monitor is firmly supported, and for the protection of the PC motherboard, a transparent acrylic cover is provided.

Designed for practical learning, non-destructive faults are simulated through slider and toggle switches mounted on five panels, allowing section-wise fault teaching and troubleshooting. The PC trainer is not limited to training purposes; it can also be utilized as a regular lab PC. Powered by the latest high-speed processors, it avoids outdated, slow Pentiums:

SALIENT FEATURES:
PC trainer mounted in all open fashion with open drawer for keyboard & mouse & LCD Monitor firmly supported on compact Aluminum profile flat demo Rack. For protection of PC motherboard transparent acrylic cover provided.Non-destructive faults have been implemented through slider & Toggle switches mounted on 5 Panels to teach section wise faults & their troubleshooting.PC trainer may be used as regular lab PC. Trainer uses latest high speed processors & not outdated slow Pentiums. Set of Users Guide & PC H/W theory book provided with each unit. Enclosure/accessories: Aluminum profile rack system with telescopic sliding drawerfor keyboard,mouse and speakers.

Number of panels & their function (No. of fault switches):
PCl=Fault panel for Serial,Parallel,PS2,USB.(31=31slide switches),PC2=SMPS ,PC4=Faul
Panel,PC3=Fault panel for SMPS & VGA.(14=10sinde+toggle),
panel for CMIOS & front panel.(1=slide),PC5=Fault Panel for Drives.(HDD,CD/DVD)(8=8DIP):Number of Faults=54

Fault Panels:
PC1:1)Serial:CTS,RTS,DSR,DTR,TXD,RXD.,2) Parallel: D0-D7,/Error,Strobe,Auto fed,initialize,Select,Busy/ACK,select in, 3) PS2 keyboard: Vcc,CLK,Data.,4)PS2 Mouse:Vcc,CLK,Data.5)USB:Vcc,D+,D-
PC3:1)SMPS:VRM,+12V,+5V,+3.3V,Standby,power good,P.S.ON,-12V,2)
VGA:H-sync,V-sync,Red missing,Blue missing,Green missing,R+Gmissing G+B
missing R+B missing,blurred image.
PC4:CMOS error
PC5: 1)HDD: TXP, TXN,RXN,RXP., 2) CD/DVD:TXP,TXN,RXN,RXP

System Specifications:
Subject to evolve/change as newer & high-speed PC models appear in market.
CPU-Intel Dual core (2.7GHz),Mother Board-Intel Chipset,Minimum Memory
(RAM)2GB,Hard disk-Serial ATA (SATA) 500GB,Monitor-LCD 15? Color,
Keyboard:-PS2 keyboard,Mouse:-PS2 Optical Mouse, SMPS:-450 Watts,
CD/DVD R/W drive:-Serial ATA (SATA) interface,Sound card:-Built-in MB,Speaker-Stereo Speakers.

PC Specifications:
·Processor-Intel(R)Dual Core or higher,
·Motherboard board Chipset: Intel® Chipset),
·Hard Disk: 500GB 7200RPM SATA,
·RAM:4GB Dual Channel,·VGA
Graphics card:Built in,
·Optical Drive: 16X DVD+/-RW,
·Keyboard and mouse:USB device,Windows enhanced Keyboard,optical mouse with scroll button.,
·Network Adapter/Port:10/100 Mbps.·Fault Insertion (only for the reference/demo unit only),
·Display: 19.5 inch Widescreen Flat Panel LCD Monitor
Warranty:1 (One) Year (Without Adapter)
