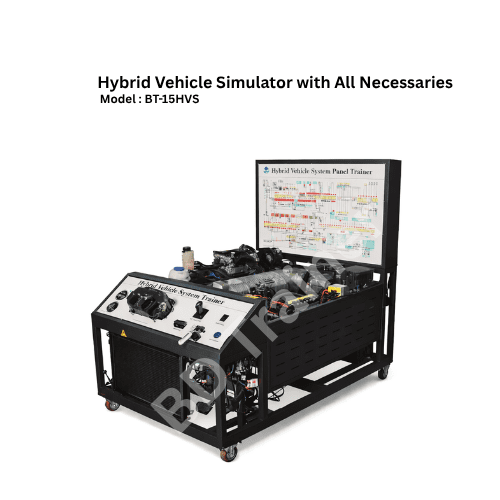

Hybrid Vehicle Simulator with All Necessaries – BT-15HVS
Product Overview
The Hybrid Vehicle Simulator (BT-15HVS) is an advanced automotive training system designed to demonstrate the operation of hybrid gasoline–electric vehicles. Built with real automotive components, this simulator provides hands-on experience in hybrid system diagnostics, maintenance, and troubleshooting.
Key Features
- Demonstrates hybrid gasoline–electric vehicle operation
- Uses real automotive components for practical training
- Printed hybrid system schematic training panel
- Test terminals for sensor and actuator signal measurement
- OBD diagnostic interface for scanner connection
- Manual fault simulation module for troubleshooting training
- Heavy-duty mobile frame with lockable caster wheels
- Safety covers for rotating and electrical components
Technical Specifications
Core System Components
- Engine: Toyota Hybrid Engine (1NZ-FXE / 2ZR-FXE)
- Motor: Three-phase AC motor
- Transmission: Hybrid transaxle (E-CVT planetary gear)
- Battery: High voltage hybrid battery + 12V battery
- Fuel Tank: Minimum 10 Liters
- Cooling System: Radiator with electronic fan
Diagnostic & Measurement
- Diagnostic Interface: OBD-II compatible
- Measurement: Voltage, resistance, and signal test points
- Fault Simulation: Manual switch-type fault insertion
Structure
- Frame: Heavy-duty powder-coated steel mobile frame
Manufacturing Information
- Year of Manufacture: 2026
Training Functions
- Hybrid vehicle system structure study
- Engine and motor operation demonstration
- Sensor and actuator signal measurement
- Diagnostic scanner operation
- Fault detection and troubleshooting
- Hybrid system maintenance training
Main Components Included
- Test panel with printed schematic diagram
- Dashboard assembly
- Engine ECU
- Automatic transmission ECU
- Hybrid control ECU
- High voltage battery control ECU
- Power control ECU
- Gateway ECU
- Smart key system
- High voltage hybrid battery
- Engine assembly
- Radiator with cooling fan
- Accelerator pedal
- Fuel tank (10L)
- 12V auxiliary battery
- Relay and fuse system
- Diagnostic port
- Fault simulation module
- Mobile training frame
