Laptop Troubleshooting Trainer (BT-02LTT)

Description

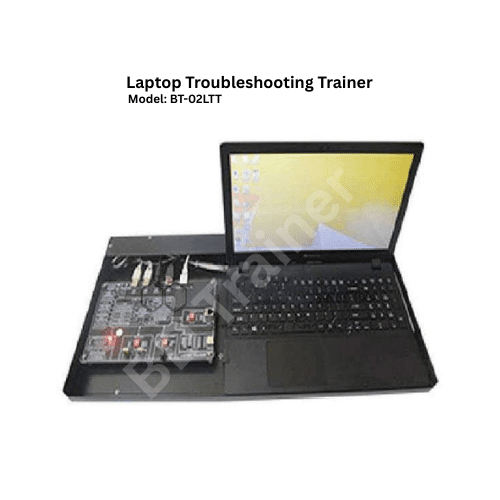

Laptop Troubleshooting Trainer
Model: BT-02LTT

Technical Specifications:
Key Features: Load provided for testing the DC outputs, Variac Is also Provided as optional for Input Voltage, All interconnections are made using 2mnm socket, Test points are provided to analyze signals at various points, Circuit Diagram provided on the front panel,Bare board Tested Glass Epoxy SMOBC PCB with Block Diagram,Attractive ABS Plastic Enclosure, User Manual for Experiments. Experiments:Study of PWM switching device,Study of Opt coupler, Study of Regulation.

Input: 80 to 230 V AC ±10%,50 Hz
Outputs: +12 V DC regulated,-12 V DC regulated,+5 V DC regulated Switching Transformer Input: 320 V DC switching at 132 KHz
Fuse: 2A

Laptop Specifications:
Processor: Intel Core Dual Core or higher, Ram 4 GB or higher,
HHD/SSD: 256GB,
Display:  14” match
Warranty: 1 (One) Year(Without Adapter)
