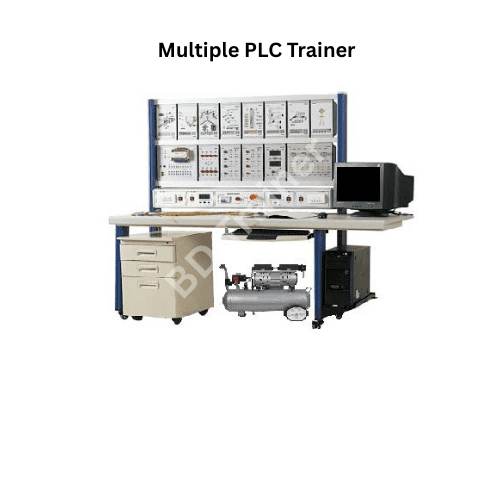

Multiple PLC Trainer
Model: BT-100MP
Product Description
The Multiple PLC Trainer (Model: BT-100MP) is a comprehensive industrial automation training system designed for technical institutes, engineering colleges, and industrial training centers.
The system is built on an aluminum profile hydraulic operation station and integrates nine different reputed PLC brands, ensuring that no two PLCs are from the same manufacturer.
With 17 additional I/O interfacing modules, students can program, interface, and control real industrial loads using different PLC platforms. This enables hands-on experience in industrial machinery control, automation, and process control systems.
Key Features
- Aluminum profile–based hydraulic operation station
- Integration of 9 different reputed PLC brands
- 17 extra input/output modules for PLC interfacing
- Supports real-time industrial automation experiments
- Suitable for PLC programming, pneumatics, motor control, sensors, VFD, and HMI applications
- Ideal for skill development, lab training, and industrial automation education
Experiment List
- Construction of nine different categories of PLC
- Interfacing methods of nine different PLC categories
- Programming methods of nine different PLCs
- Pick & Place using PLC & Pneumatic Air Suction
- Pick & Place using PLC & Pneumatic Gripper
- Water Pump Control using PLC
- Fire Indication System using PLC
- Traffic Light Control using PLC
- Construction of Pneumatic Cylinder
- Sequential control of three pneumatic cylinders
- Construction of Pneumatic Solenoid Valve
- Control of Pneumatic Solenoid Valve using PLC
- PLC & Pneumatic Solenoid Valve interfacing
- Control Relay operation using PLC
- Three-phase induction motor starter using PLC
- Forward & reverse operation of three-phase induction motor
- PLC interfacing with input switches
- PLC interfacing with input sensors
- Proximity sensor interfacing with PLC
- Photo sensor interfacing with PLC
- Variable Frequency Drive (VFD) operation with PLC
- Programming of VFD using PLC
- Construction of three-phase induction motor
- Interfacing of induction motor with VFD & PLC
- Construction of stepper motor
- Interfacing of stepper motor with PLC
- Construction of seven-segment display
- Interfacing of seven-segment display with PLC
- Power supply interfacing with all PLC modules
Technical Specifications
- Main Voltage: 220V / 230V, 50/60Hz
- Working Table: 1 No.
- Working Frame: 3-step
- Module Storage Cabinet: 2 Nos.
- Electrical Accessories Cabinet: 1 No.
- Air Compressor: 1 No.
- Power: AC 220V ±10%, 50/60Hz
- Motor Power: 650W
- Tank Capacity: 9L
- Output Pressure: 0.7 MPa
- Noise Level: 66 dB
- Connection Facility: 2mm & 4mm safety sockets
- Overall Dimensions (L × W × H): 1740 × 695 × 1660 mm
PLC Modules
Module-01: Siemens PLC
- Programming: Ladder, FBD
- Built-in Ethernet communication
- Digital Input: 8
- Digital Output: 4
- Analog Input: 4
- Analog Output: 2
- Input Voltage: 24VDC
- Programming Software: LOGO Soft Comfort
- Display Unit: Yes
- Module Dimension: 295 × 225 × 45 mm
Module-02: Mitsubishi PLC
- Power Supply: 24VDC
- Digital Input: 8
- Digital Output: 8 (Relay)
- Communication: RS-232, RS-485, RS-422, USB
- Program Memory: 128K steps or higher
- Programming Software: GX-Developer
- Module Dimension: 295 × 225 × 45 mm
Module-03: Fatek PLC
- Digital Input: 8
- High-speed inputs up to 100 kHz
- Digital Output: 6 (Relay)
- Communication: RS-232 / USB
- Built-in Power Supply
- Module Dimension: 295 × 225 × 45 mm
Module-04: Omron PLC
- Power Supply: 220VAC
- Digital Input: 18
- Digital Output: 12 (Relay)
- Triggering Voltage: 24VDC
- Module Dimension: 295 × 225 × 45 mm
Module-05: Delta PLC
- Power Supply: 220VAC
- Digital Input: 6
- Digital Output: 4 (Relay)
- Triggering Voltage: 24VDC
- Module Dimension: 295 × 225 × 45 mm
Module-06: Allen-Bradley PLC
- Digital Input: 12
- Digital Output: 7
- Analog Input: 4
- Analog Output: 1
- Ethernet/IP communication
- Micro SD slot support
- Supports Micro800® plug-in modules
- Module Dimension: 295 × 225 × 45 mm
Module-07: LS PLC
- Power Supply: 220VAC
- Digital Input: 18
- Digital Output: 12 (Relay)
- Triggering Voltage: 24VDC
- Module Dimension: 295 × 225 × 45 mm
Module-08: Schneider Electric PLC
- Built-in LCD display
- High-speed operation
- Up to 500 I/O points (FBD)
- Relay outputs: 4
- Discrete inputs: 6
- IP20 protection
- Module Dimension: 295 × 225 × 45 mm
Module-09: Wecon PLC
- Power Supply: 220VAC
- Digital Input: 8
- Digital Output: 6 (Relay)
- Triggering Voltage: 24VDC
- Module Dimension: 295 × 225 × 45 mm
Application Modules (Module-10 to Module-26)
- Pick & Place (Air Suction & Gripper) Modules
- Water Pump Control Module
- Fire Indication System Module
- Traffic Light Control Module
- Pneumatic Control & Solenoid Valve Modules
- Motor Starter Module
- Input Switch Module
- Sensor Module (Proximity, Photo, Thermocouple)
- Output Indicator Module
- Variable Frequency Drive Module
- Three-Phase Induction Motor Module
- Stepper Motor Control Module
- Seven Segment Display Module
- Power Supply Module (5V / 12V / 24V DC)
All modules include 2mm & 4mm safety socket PLC interfacing.
Accessories Included
- Air Compressor – 1 No.
- 2mm / 4mm Connecting Jacks – 1 Set
- Power Cable – 1 No.
- PLC to PC Communication Cables – 9 Sets
- Simulation Software for compatible PLCs
- English Manual & CD – 1 Set
- Computer: Optional
