Description

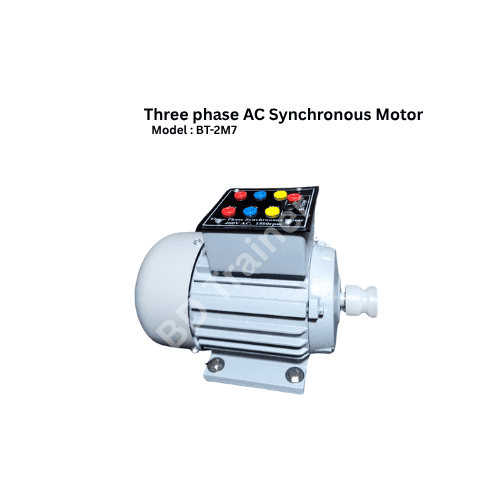

Three phase AC Synchronous Motor
Model: BT-2M7
The Three-Phase A/C Synchronous Motor (BT-2M7) is designed for efficient operation with a voltage of 230/400 V at 50 Hz. It achieves a speed of 1500 RPM, configured with 4 poles, and requires an excitation voltage of 12V DC. This motor operates as a synchronous motor with induction starting, featuring a delta-star connection for versatility. Constructed in the IM B3 form, it offers protection rated at IP 22, safeguarding against solid objects larger than 12 mm and limited moisture ingress.
Additionally, it is equipped with a thermal protector to prevent overheating,
Description
Three phase ac Synchronous Motor
Specifications:
• Voltage: 230/400 V 50 Hz
• R.p.m.: 1500 (4 poles)
• Excitation voltage: 12 Vdc
• It also runs as a synchronous motor with induction starting
• Delta-star connection
• Form of construction: IM B3
• Protection: IP 22
• Thermal protector
Others :
Parts Origin: China, Taiwan, German
Manufacturing: Assemble in Bangladesh
Installation,
Warranty: 01 year
